UltraBench UB3648 + UltraLeg UL3648 Bundle (36x48 Complete Workbench)
UltraBench UB3648 + UltraLeg UL3648 Bundle (36x48 Complete Workbench)
Couldn't load pickup availability

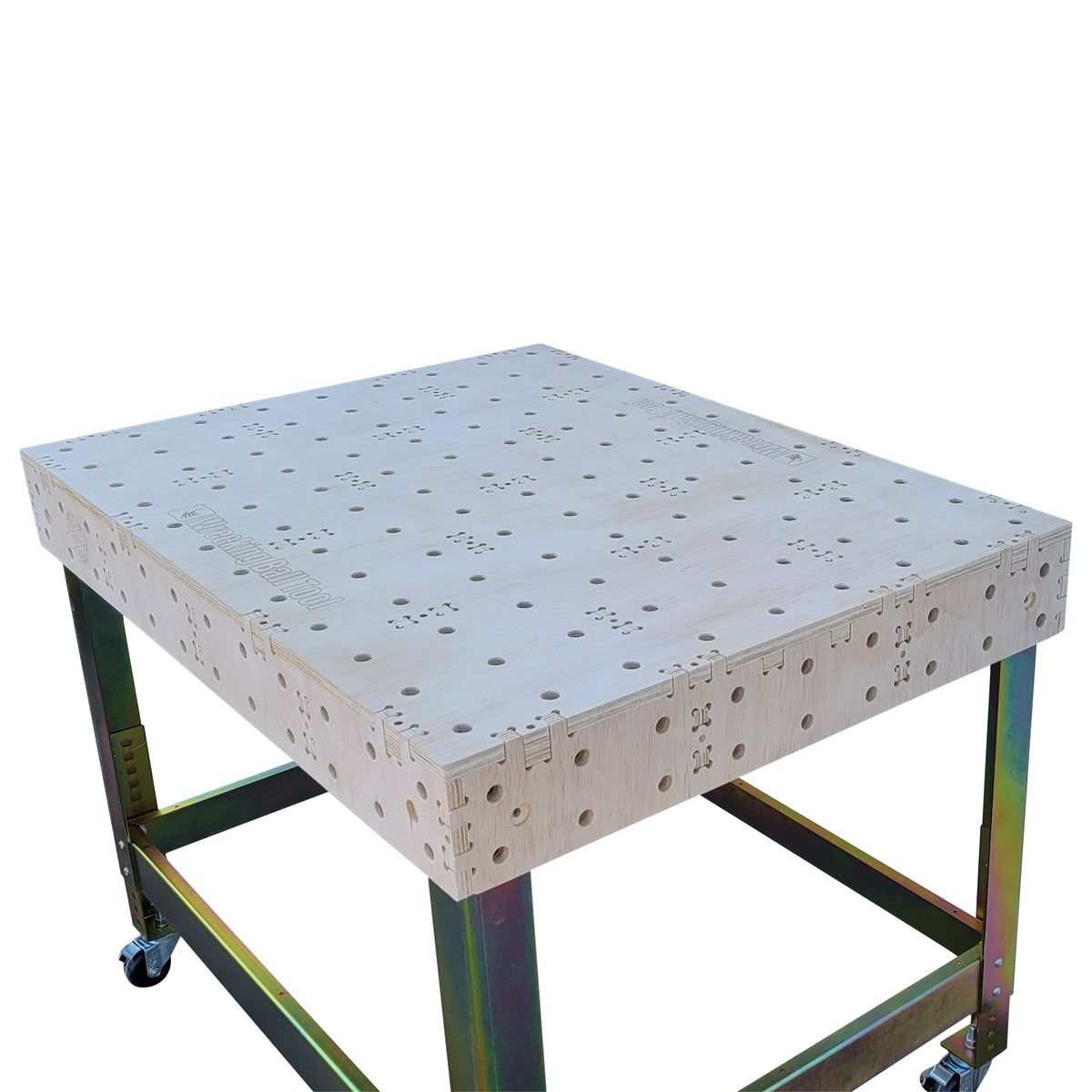

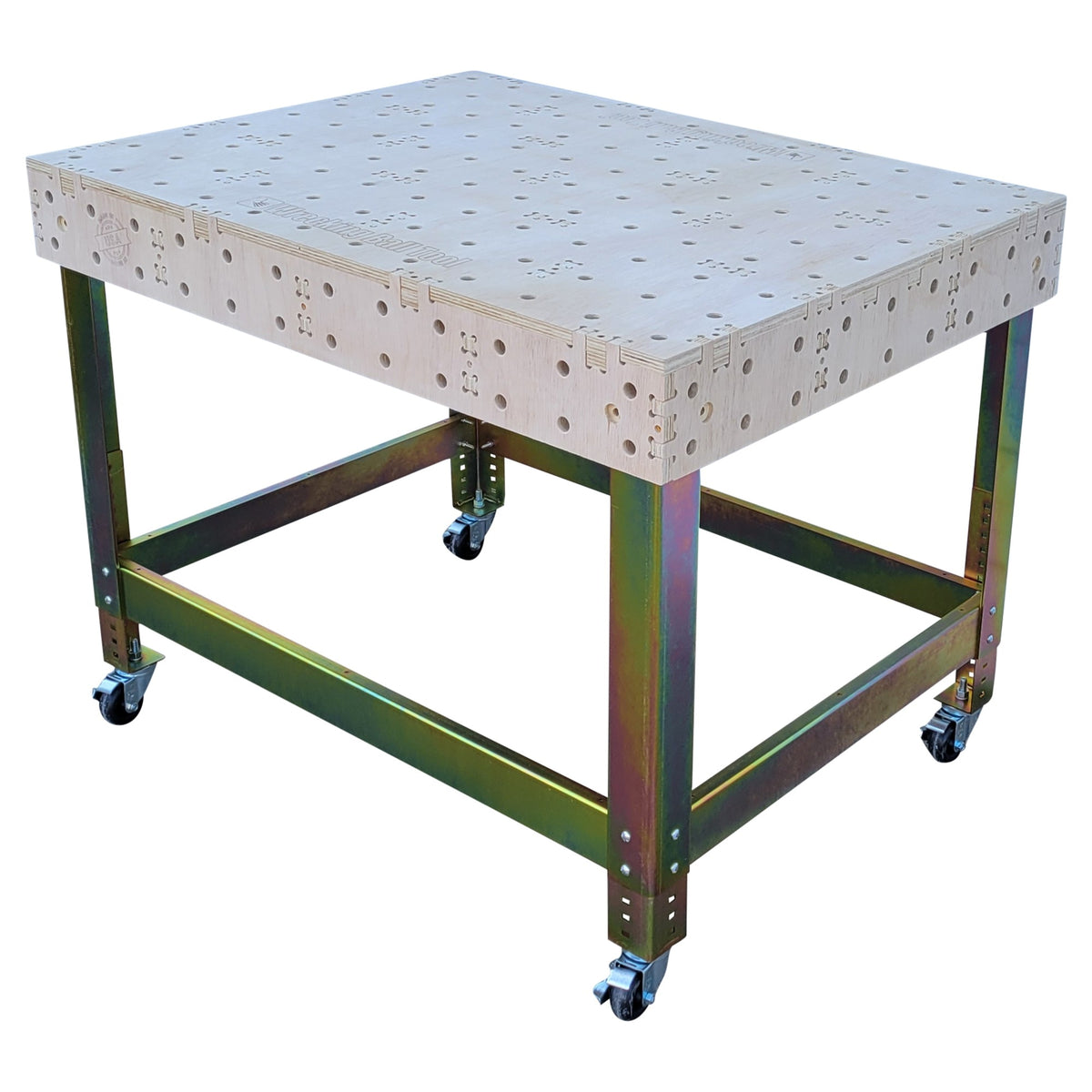

Everything you need for a complete 36" x 48" mobile dog-hole workbench in one order. This bundle pairs the UltraBench UB3648 torsion-box top, with its 3/4" dog-hole grid CNC-cut to ±.010", with the matching UltraLeg UL3648 laser-cut steel base on heavy-duty locking casters. The deeper 36" top gives you room for glue-ups, case assembly, and breaking down sheet goods. Set the working height anywhere from 32" to 43" during assembly, roll it where you need it, and lock it down to work. Made in the USA.
What's included
- 1 x UltraBench UB3648 36" x 48" modular workbench top kit: 11 CNC-cut furniture-grade plywood part types with hardwood cores, and 48 #10 x 2-1/2" T25 Torx wood screws
- 1 x UltraLeg UL3648 steel leg kit: 1/8" A36 HRPO steel upper and lower legs, 14 ga steel braces, yellow zinc plated, 4 heavy-duty swivel locking casters (1,400 lb caster capacity), and all hardware
- Downloadable assembly instructions
| Top size | 36" x 48" |
|---|---|
| Top surface | 1-1/2" thick, torsion-box body of 3/4" panels |
| Dog holes | 3/4", compatible with 3/4" dog-table and peg-table tooling |
| Working height | 32" to 43" (floor to work surface) in 1" steps, set during assembly |
| Base | Laser cut and formed A36 steel, yellow zinc plated, locking casters |
| Approx. shipping weight | 135.7 lb total (71 lb top + 64.7 lb legs), ships as two boxes |
| Assembly | Customer assembled (flat-pack kits) |
| Made in | USA |
What you'll need
- About 8 oz of wood glue (not included)
- T25 Torx driver, #2 Phillips screwdriver, clean rubber mallet, and a sheet of 120-grit sandpaper or ScotchBrite
- SAE wrenches or sockets (7/16", 9/16", 3/4")
Grows with your shop
Every UltraBench top shares the same 3/4" dog-hole grid. Add more benches later and bolt them together with 3/4" shoulder bolts, end to end, L-shaped, or as an island, and the grid stays continuous across the seam.
Lifetime guarantee. If you are ever unhappy with your UltraBench system, send us a message and we will make it right.
