A flat, CNC-precise 24" x 48" dog-hole workbench top that bolts to more UltraBenches as your shop grows. The UB2448 is a torsion-box bench top with a 3/4" dog-hole grid cut to ±.010". Its 2' x 4' footprint fits a garage or basement shop, works with the 3/4" dogs, clamps, and hold-downs you already own, and is the starting point for a modular bench system. Made in the USA.
Model
UB2448
Top size
24" x 48"
Top surface thickness
1-1/2"
Body construction
3/4" panels, torsion-box design
Material
Furniture-grade plywood with hardwood cores
Manufacturing
CNC cut, ±.010"
Dog holes
3/4", compatible with 3/4" dog-table and peg-table tooling
Modular connection
Bolts to other UltraBenches with 3/4" shoulder bolts; grid stays continuous
Approx. shipping weight
54 lb
Assembly
Customer assembled (flat-pack kit)
Patents
Patents pending
Made in
USA
What's included
9 CNC-cut plywood part types: top, long sides, short sides, long and short braces, and doubler plates
Legs sold separately: pair with the UltraLeg UL2448 steel leg kit with locking casters, or mount the top on a base of your own.
How the modular system works

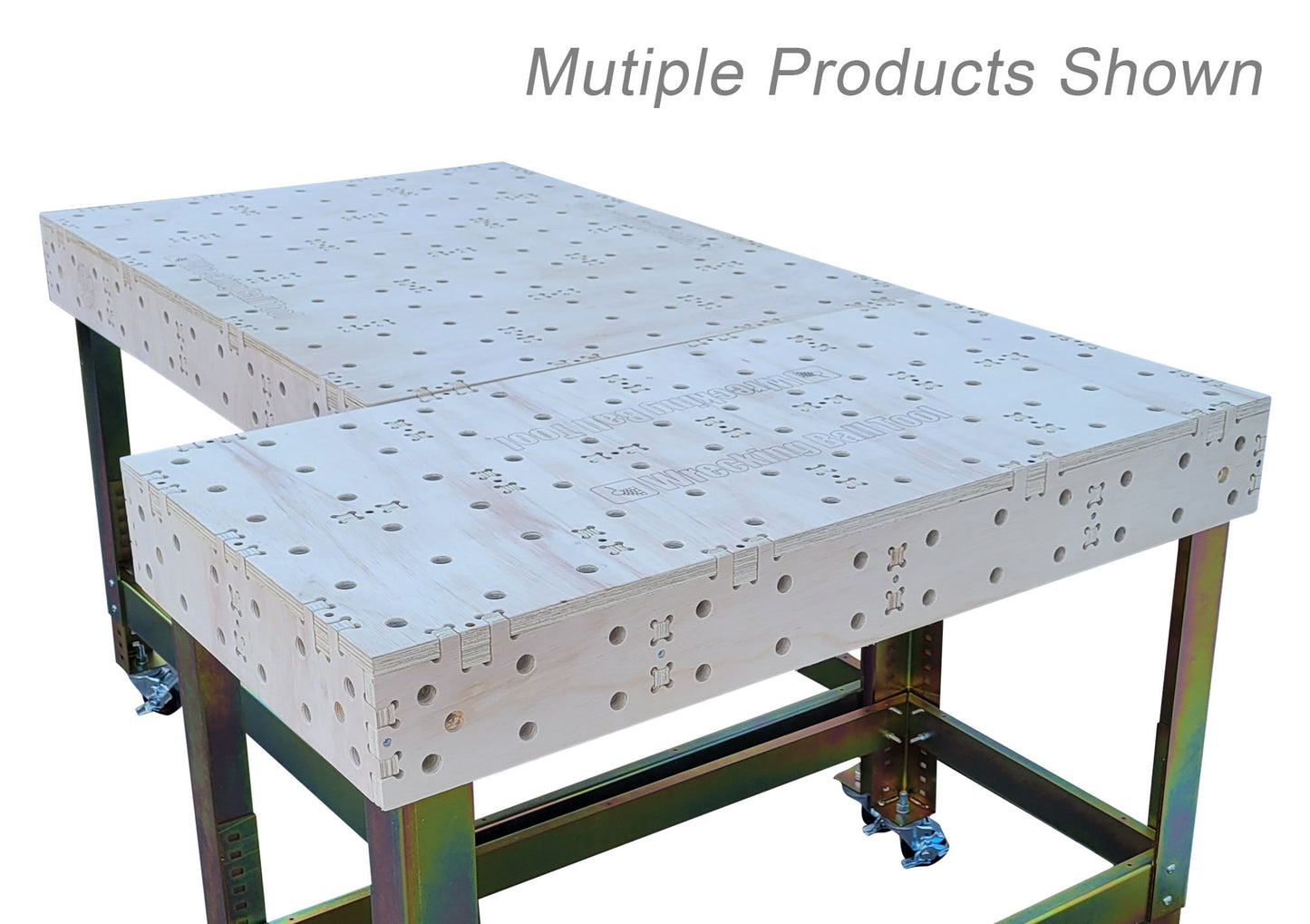

Every UltraBench top shares the same 3/4" dog-hole grid. Set two or more benches side by side in any layout, end to end, L-shaped, or as an island, and bolt them together with 3/4" shoulder bolts. The grid stays continuous across the seam, so dogs, stops, and clamps line up from one bench to the next. Start with one bench and add more when your shop grows.
